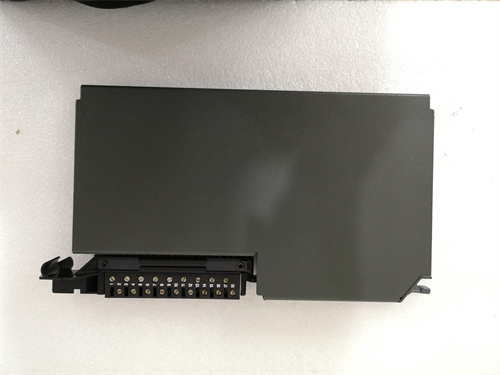

AB 1771-IXE is an isolated analog input module produced by Allen-Bradley(A-B,Rockwell Automation),which is mainly used in PLC(Programmable Logic Controller)5 series control systems.The following is a detailed introduction to the AB 1771-IXE module:

1.Basic features

Brand and model:Allen-Bradley 1771-IXE

Type:Isolated analog input module

Compatibility:Compatible with Allen-Bradley PLC 5 series controllers and controller components,and can be used in all PLC 5 series Bulletin 1771 chassis.

2.Technical Specifications

Input Type:Thermocouple Input and Millivolt Input

Supported Thermocouple Types:E,J,K,T,R,and S Types

Supported Millivolt Range:±100mV

Allows 8 inputs of the same type or 4 inputs of 2 different types

Cold Junction Compensation:Range is 0 to 60 degrees Celsius with an accuracy of±0.5 degrees Celsius

Temperature Scale Selection:Selectable Celsius or Fahrenheit

Temperature Resolution:1 degree Celsius or 1 degree Fahrenheit

Millivolt Resolution:10µV

Backplane Current Load:Requires 750mA at 5V

Channel Update Time:50 milliseconds for every 8 channels

Power Consumption:Maximum power consumption is 4.25 watts and maximum heat dissipation is 14.5 BTU/hour

Installation:Requires a slot in the 1771 I/O chassis,no external power supply is required

Wiring:Connects to the 1771-WI field wiring arm,no need to disconnect wiring when replacing modules

3.Functions and Features

Automatic Calibration:AB The 1771-IXE module is able to automatically calibrate the offset and gain of each channel without the need for potentiometers.

Alarm function:It has user-selectable high and low temperature alarms and can be connected to a human-machine interface(HMI)or supervisory control and data acquisition(SCADA)system for monitoring.

Communication and interface:The input data word is transferred from its memory to the PLC processor using block transfer read and write(BTR)and(BTW)instructions.

Indicator:There is a green RUN and a red FLT indicator on the front panel to indicate power and fault status.

Self-diagnosis:During power-on,the module performs self-diagnosis and reports its status.

Open circuit detection:An open circuit detection function is provided when the thermocouple fails.

IV.Application scenarios

The AB 1771-IXE module is particularly suitable for temperature applications because thermocouple sensors are temperature measurement devices.In addition,the module is also commonly used in factory automation applications,and the resistance input compatibility can be used to measure the displacement of the device.Its high accuracy and reliability make it an important component in industrial automation control systems.
