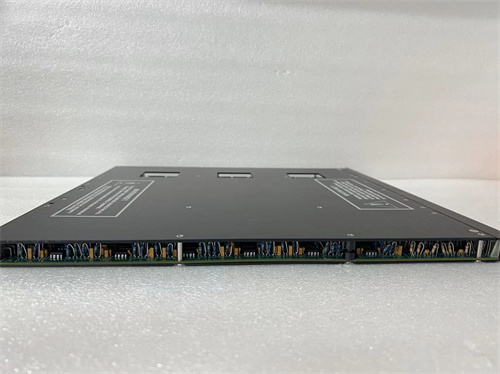

TRICONEX 3511 is a high-performance pulse input module.The following is a detailed introduction to it:

1.Product Overview

TRICONEX 3511 belongs to the TRICONEX series.This series of modules is designed for industrial automation and process control with high reliability and stability.It is mainly used to collect pulse signals from rotating equipment(such as turbines,compressors,etc.)and convert them into digital signals for processing and analysis by the safety instrument system(SIS).

2.Product Features

Triple Redundancy Design:TRICONEX 3511 adopts triple redundant design(TMR)to ensure that the system can still operate normally when a single component fails,thereby meeting strict industry standards.

High Precision:The module has high precision,can collect very weak pulse signals,and supports high-frequency pulse signal collection.

Strong anti-interference ability:TRICONEX 3511 can work stably in harsh industrial environments and has strong anti-interference ability.

Easy to configure:The module parameters can be easily configured through software to improve the convenience of use.

Diagnostic function:Provides real-time diagnosis and health monitoring functions to help timely discover and solve problems.

3.Product parameters

Input signal type:pulse input.

Number of channels:8 channels.

Frequency range:typically 20 Hz to 20,000 Hz(some data mention 1 Hz to 10 kHz,which may vary depending on product version or customized requirements).

Resolution:16 bits.

Accuracy:±0.01%.

Update rate:25 milliseconds typical.

Impedance:greater than 8KW,20KW typical.

Common mode range:-100 VDC to+100 VDC.

Normal mode range:1.5 V to 200 V.

Overrange protection:±150 VDC.

Operating temperature:-40°C to+70°C(some data mention-40°C to 85°C,which may vary depending on product version or working environment).

Dimensions:128 x 128 x 29 mm.

4.Application fields

TRICONEX 3511 is widely used in many industrial fields,including but not limited to:

Petrochemical:used to measure the speed of turbines and compressors.

Electricity:used to measure the speed of generators.

Water treatment:used to measure the speed of pumps.

Pharmaceuticals:used for flow measurement in pharmaceutical production.

Metallurgy:used for speed measurement in metallurgical production.

5.Other functions

Flow measurement:TRICONEX 3511 can be used to measure the flow of fluids for process control.

Speed​​measurement:measure the speed of rotating equipment to monitor the operating status of equipment.

Position measurement:measure the pulse signal generated by the encoder to measure the position.

Programmable logic control:allows users to write and execute customized control logic according to specific application requirements.

Communication interface:supports communication with other TRICONEX modules and external devices to achieve data sharing and collaborative work between systems.
