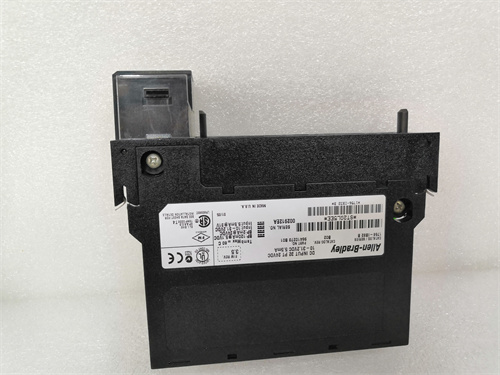

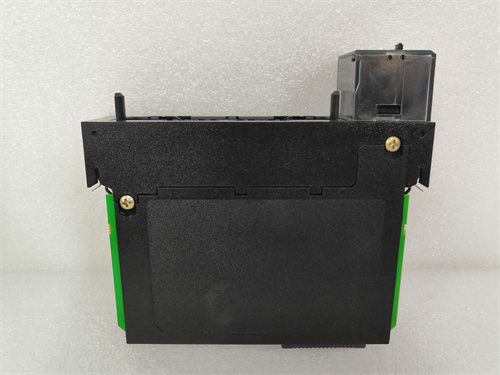

1756-IB32 is a digital input/output module of the ALLEN-BRADLEY brand ControlLogix series under Rockwell Automation.The following is a detailed introduction to the module:

1.Basic attributes

Brand:Rockwell Automation(Allen-Bradley)

Series:ControlLogix

Type:Digital input/output module

2.Functional features

High-performance processor:The ControlLogix controller is equipped with a high-performance multi-core processor.The 1756-IB32 module,as part of it,can ensure the real-time responsiveness and processing capabilities of the system to meet the requirements of complex automation systems.

Modular architecture:The ControlLogix controller adopts a modular design,and the 1756-IB32 module supports flexible input/output(I/O)configuration.Users can choose different types of I/O modules according to specific application requirements.This flexibility enables the 1756-IB32 to meet the I/O requirements of different systems.

Multiple communication interfaces:The ControlLogix controller supports a variety of communication interfaces and network protocols,including Ethernet,ControlNet,DeviceNet,etc.Through these communication interfaces,the 1756-IB32 module can exchange and communicate reliably with other devices and systems to achieve integration and collaborative control between systems.

Safety and reliability:The ControlLogix controller supports integrated safety functions such as GuardLogix technology,providing safety control and monitoring functions that can meet strict safety standards and requirements.At the same time,the 1756-IB32 module also has reliability and fault diagnosis functions,which can monitor the system status in real time and respond quickly to fault conditions.

III.Technical specifications

Number of input points:There are two groups of 32 inputs,16 points each,for a total of 32 digital input channels.

Operating voltage:The range is 10 to 31.2 volts DC,and the nominal input voltage is 24 volts DC.

Current consumption:The current consumption is 120mA at 5.1 volts and 2mA at 24 volts.

Maximum surge current rating:250mA,which decays to less than 37%within 22 milliseconds when not activated.

Backplane power rating:0.66W.

Power consumption and heat dissipation:The maximum power consumption at 60 degrees Celsius is 6.2W,and the heat dissipation is 21.1 BTU/hour.

IV.Application Fields

The 1756-IB32 module is widely used in manufacturing,process control,utilities and other fields due to its powerful performance and flexibility.It can meet the needs of various complex automation systems and provide reliable data input and output functions.
