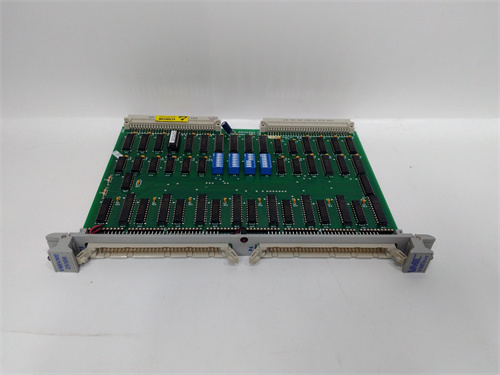

VMIVME-2510B-100(or VMIVME2510B for short)is a powerful input-output(I/O)board,mainly used for signal transmission and processing in industrial automation and control systems.The following is a detailed introduction to the product:

I.Product Overview

VMIVME-2510B-100 is a member of the VMIC Megamodule series,which has universal programming functions and supports a variety of data transmission and fault detection mechanisms.The VMIVME-2510B-100 input-output board is designed to provide high reliability,flexibility and ease of use to meet the various needs of industrial automation and control systems.

II.Technical Specifications and Features

Support TTL Logic Level I/O:

VMIVME-2510B-100 supports TTL(Transistor-Transistor Logic)logic level input and output.

It has the characteristics of true TTL logic level I/O and no output resistor installed.

Programming Flexibility:

The direction of each 8-bit port can be programmed individually,allowing users to flexibly configure the input or output function of each port.

64mA sink capability(15mA source)and built-in test logic for fault detection and isolation.

Data transfer capability:

Supports 8-bit,16-bit,and 32-bit data transfer,capable of efficiently handling a variety of data communication tasks.

High reliability:

The use of high-reliability DIN-type I/O connectors ensures stability and reliability in harsh industrial environments.

The high-strength aluminum housing provides IP40 protection and is resistant to shock and vibration.

Built-in test function:

Specific hardware is included in the design to support built-in test functions,supporting offline and online fault detection and isolation.

The front panel fault LED is used to indicate when a fault exists on the board.The LED will light up when power is applied or reset,and the LED will go out after successful board-level diagnostics.

Subsystem configuration:

Supports subsystem configuration,and can configure continuous I/O addresses to save memory.

The CSR address switch can be set so that all CSRs between various boards in the system can be mapped to continuous memory locations.

Network support:

Supports Ethernet Modbus TCP/UDP/IP,provides dual-path communication redundancy,supports STP,RSTP and proprietary redundancy schemes.

Ordering optional fiber multimode ports provides fast isolated network transmission up to 2 kilometers.

III.Application scenarios

The VMIVME-2510B-100 input and output board can be used for process control and automation system integration.It can communicate with various equipment and sensors on the factory production line,and achieve precise control of the production process by monitoring and controlling input and output signals to ensure production quality and efficiency.At the same time,the module can also be integrated with other automation equipment and systems,such as PLC(programmable logic controller),SCADA(supervisory control and data acquisition system),etc.,to achieve automated control and monitoring of the production process.
