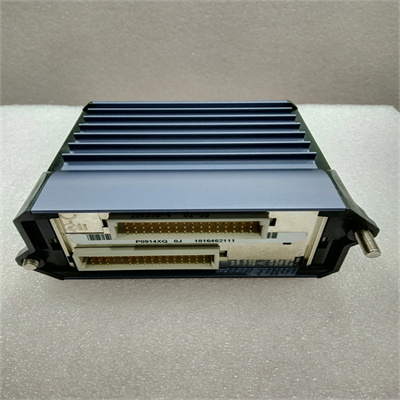

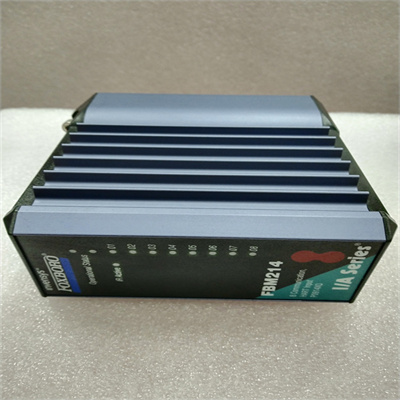

FBM214 Product Details

Product Overview

FBM214 is a HART communication input interface module widely used in industrial process control systems.It is mainly used to collect and process analog and digital signals from field HART smart instruments.FBM214 can convert these signals into standard 4-20mA analog signals and exchange data with the host computer through the HART communication protocol.

Main Features

HART communication:Supports HART protocol,can communicate with various HART smart instruments,and obtain real-time data and configuration information of the instrument.

Analog input:Provides multiple 4-20mA analog input channels,which can be directly connected to various industrial sensors.

Signal isolation:There is good electrical isolation between each channel to effectively prevent signal interference.

Flexible configuration:The module can be flexibly configured through software to adapt to different application requirements.

High reliability:Adopts industrial-grade design with high reliability and stability.

Application field

Process control:In chemical,petroleum,electric power and other industries,it is used to collect process variables and realize real-time monitoring and control of production processes.

Environmental monitoring:used to collect environmental parameters such as temperature,humidity,pressure,etc.

Water treatment:used to monitor water quality parameters such as pH value,conductivity,etc.

Technical parameters(typical values,specific parameters are subject to the product manual)

Number of input channels:8

Input signal:4-20mA analog signal,support HART protocol

Supply voltage:24V DC

Operating temperature:0℃~50℃
