5136-RE-VME

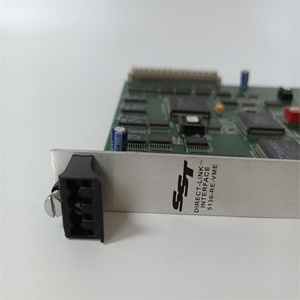

‌ABB 5136-RE-VME Product Details‌

The ABB 5136-RE-VME is a powerful CPU module designed specifically for industrial automation applications. Belonging to the 6U VME interface card series, it offers a comprehensive set of features that make it an ideal choice for various high-performance tasks.
‌Product Parameters & Specifications‌:

-‌Processor‌: Equipped with a 16 MHz V40 microprocessor integrated with 128K RAM, ensuring efficient data processing and instruction execution
1
2
.
-‌DeviceNet Compatibility‌: Features a 5-pin CAN connector, enabling seamless communication with DeviceNet and other CAN-based networks. Supports CAN data rates up to 1 megabaud, compatible with standard DeviceNet rates of 125, 250, and 500 kilobaud
-‌Memory Address‌: Offers a software-selectable memory address function, allowing for flexible memory allocation and management
1
2
.
‌Physical Attributes‌:

-‌Dimensions‌: Measures 6U in size, making it compatible with standard VMEbus systems
3
4
.
-‌Weight‌: Weighs approximately 200 grams, ensuring lightweight yet durable construction
3
4
.
‌Series & Features‌:

-‌Series‌: Part of the 6U VME interface card series, designed for industrial automation, robot control, and other high-performance applications
1
2
.
-‌Scalability‌: Can be easily expanded with standard Pluto servo drives using the flat cable included in the development kit, allowing for flexible system configurations
1
2
.
-‌Bus Support‌: Supports VME64x standard, including VME64x bus exchange, interrupt, and reset
3
4
.
‌Applications‌:

The ABB 5136-RE-VME CPU module is widely used in various industries such as military, aerospace, power, and surveillance, where high-speed communication and reliable data processing are crucial
3
4
. Its comprehensive feature set, efficient performance, and scalability make it an excellent choice for integrating into existing automation systems and enhancing their overall performance and stability.
