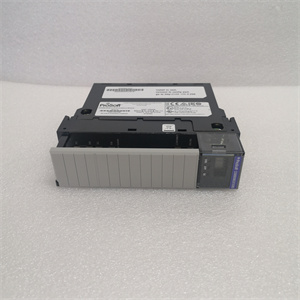

PROSOFT MVI56E-MCM

Overview

The PROSOFT MVI56E-MCM is a communication module designed to bridge the gap between Rockwell Automation ControlLogix processors and Modbus RTU/ASCII devices. It acts as an interface, enabling seamless communication and data exchange between these two systems.

Key Features

• Modbus Master/Slave: Versatile module capable of functioning as both a Modbus master and slave.
• Dual Serial Ports: Equipped with two independently configurable serial ports for connecting to different Modbus networks.
• ControlLogix Integration: Seamlessly integrates into the ControlLogix backplane, presenting Modbus data as I/O data to the processor.
• RIUP (Remove and Insert Under Power): Supports hot-swapping for convenient module replacement without system shutdown.
• Enron Modbus Support: Compatible with Enron version of the Modbus protocol for floating-point data transactions.

Applications

The MVI56E-MCM is widely used in various industries for:

• Connecting legacy Modbus devices to modern ControlLogix systems.
• Building Modbus networks within a ControlLogix environment.
• Integrating third-party Modbus devices into automation systems.
• Data acquisition and control applications involving Modbus devices.

Benefits

• Flexibility: Can be configured as a master or slave to suit different application requirements.
• Efficiency: Improves system performance by enabling direct communication between ControlLogix and Modbus devices.
• Reliability: Built with industrial-grade components for robust operation in demanding environments.
• Ease of Use: Simple configuration and setup process.

Additional Information

• Manufacturer: ProSoft Technology
• Compatibility: Works with Rockwell Automation ControlLogix processors.
• Standards: Adheres to Modbus RTU/ASCII communication protocols.
