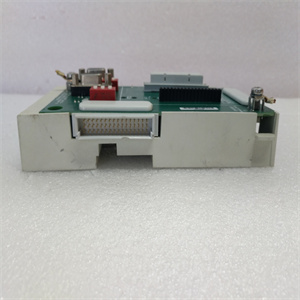

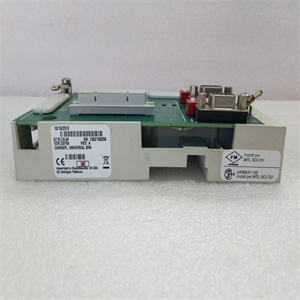

Here is a detailed overview of the MTL 8715-CA-BI product parameters, specifications, dimensions, weight, series, features, and functions in English:

Product Overview:

The MTL 8715-CA-BI is a模拟信号隔离栅 (Analog Signal Isolator) designed for isolating and transmitting 4-20mA analog signals. It plays a critical role in ensuring signal integrity and reliability in industrial automation and control systems.

Product Parameters & Specifications:

• Input Signal: 4-20mA DC
• Output Signal: 4-20mA DC or 1-5V DC (configurable)
• Isolation Voltage: 1500V AC
• Frequency Response Range: DC – 10kHz
• Linearity Error: ±0.1%
• Power Supply: 18-32V DC
• Operating Temperature Range: -20°C to +60°C
• Mounting: 35mm DIN rail mounting

Dimensions & Weight:

• Size: 22.5mm x 99mm x 114mm
• Weight: Approximately 160g (as stated in some sources; other sources mention 0.5kg, likely including packaging or accessory components)

Series:

• The MTL 8715-CA-BI belongs to the MTL product line of industrial automation and control equipment.

Features:

• Signal Isolation: Prevents interference between input and output circuits, ensuring signal quality and integrity.
• Signal Conversion: Converts 4-20mA analog signals to corresponding voltage signals (1-5V DC), facilitating compatibility with various instruments and sensors.
• Signal Amplification: Amplifies the input signal amplitude, allowing for transmission over longer distances.
• Signal Protection: Incorporates protection circuits to safeguard output devices from input circuit overvoltage, overcurrent, and other potential hazards.
• High System Reliability: Enhances system reliability and reduces downtime by isolating and protecting signals.
• Hot Swap Capability: Supports hot swapping in redundant configurations, enabling the replacement of faulty units without disrupting the main system.
• Compatibility: Interconnects with various I/O modules, controllers, power supplies, and field wiring terminals via its bus interface module (BIM) capabilities.

Functions & Applications:

• The MTL 8715-CA-BI is used to isolate and transmit analog signals in industrial automation systems. It finds applications in various industries, including but not limited to:
  • Industrial Automation
  • Process Control
  • Power Generation
  • Oil & Gas
  • Chemical Processing
• It ensures that analog signals, such as those from sensors and transmitters, are transmitted reliably and without interference, allowing for accurate monitoring and control of industrial processes.

Note:

• The information provided is based on general product specifications and features. For detailed, up-to-date, and accurate technical information, please refer to the manufacturer’s official documentation or contact the manufacturer directly.
