Product Parameters and Specifications:

• Model Number: 5SHY3545L0016 3BHB020720R0002 3BHE019719R0101 GVC736BE101
• Brand: ABB

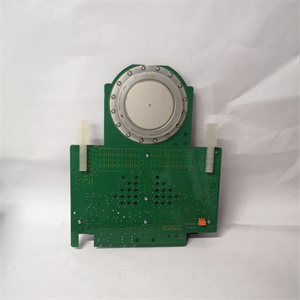

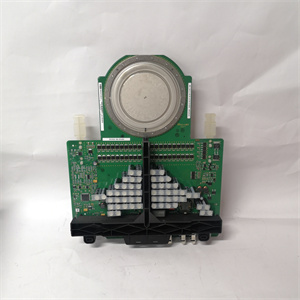

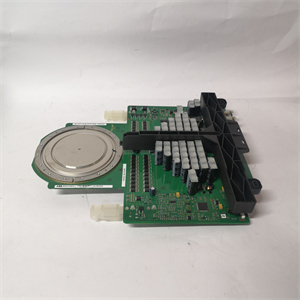

• Product Type: IGCT Module (Integrated Gate Commutated Thyristors Module)
• Weight: 2.8 kg (Approximate)
• Operating Voltage: Not specified, but typically suitable for medium voltage applications
• Output Frequency: 15 kHz (Mentioned in one source, but may vary depending on application)
• Operating Temperature Range: Wide temperature range (Optimized for medium frequency and wide temperature range)¹
• Packaging Type: Not specified, but common packaging types for similar devices include TO-220, TO-247, etc.²

Dimensions:

• Specific dimensions are not provided in the search results. These would typically be available in the product datasheet or from the manufacturer.

Series:

• The product belongs to the ABB IGCT series, which is a range of integrated gate commutated thyristor modules.

Features:

• High Current and Voltage Capability: Capable of handling large currents and high blocking voltages.
• High Switching Frequency: Offers fast switching speeds, enabling efficient power conversion.
• High Reliability: Designed for reliable operation in demanding applications.
• Low Conduction Loss: Combines the low on-state loss of thyristors with the stable turn-off ability of transistors.
• Compact Structure: Space-saving design for easy integration into power electronic systems.
• Cost-Effective: Provides a cost-effective solution for high-power applications.
• Simple Control Interface: With status feedback and AC/DC supply voltage options¹.

Applications:

• Power System Grid Devices: Used in power systems up to 100MVA.
• Medium Power Industrial Drives: Successfully applied in medium-power industrial drives up to 5MW.
• Medium Voltage Inverters: Ideal for use in medium voltage inverter systems.
• High-Power Applications: Suitable for AC power control, motor control, and other high-power applications that require precise current control².

Note:

• The exact specifications and features may vary depending on the specific model and manufacturer’s updates. It is recommended to consult the official ABB product datasheet or contact the manufacturer for the most accurate and up-to-date information.

希望以上信息对您有所帮助。如果您需要更详细或专业的技术文档，请直接联系ABB公司或访问其官方网站获取。
