Emerson A6220 Datasheet

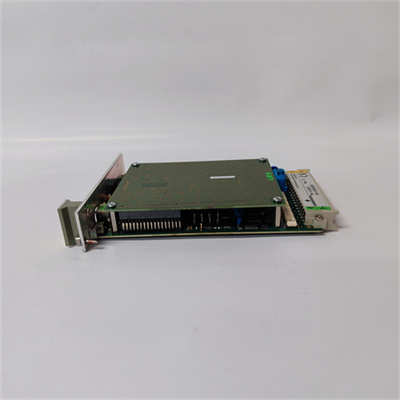

The Emerson A6220 is a two-channel, 3U size, 1-slot plug-in module that monitors proximity and position. It is designed for use in the AMS 6500 Machinery Health Monitor, which is an integral part of PlantWeb® and AMS software. The A6220 is used to monitor a variety of applications, including:

• Position monitoring: The A6220 can be used to monitor the position of valves, dampers, and other mechanical components. This information can be used to ensure that these components are operating properly and to prevent potential problems.
• Proximity monitoring: The A6220 can be used to monitor the proximity of objects to each other. This information can be used to prevent collisions and to ensure that machines are operating safely.
• Vibration monitoring: The A6220 can also be used to monitor vibration. This information can be used to identify potential problems with machinery and to schedule maintenance before a breakdown occurs.

Key features of the Emerson A6220 include:

• Two independent or combined monitoring modes
• Eddy current, differential Emerson sensor inputs
• Galvanically isolated from power supply
• Input resistance >100 kΩ
• Input voltage range 0 to -22 VDC
• Lower cutoff 1 or 5 Hz
• Upper cutoff 50-2000 Hz* Frequency band 1-1000 Hz
• Non-synchronous vibration detection
• Synchronous vibration detection
• Alarm/trip outputs for each channel
• 4-20 mA output for each channel
• RS-485 communications

Additional features:

• The Emerson A6220 is CE certified.
• The Emerson A6220 is NEMA 4X rated.
• The Emerson A6220 is backed by Emerson’s global support network.

Applications:

• The Emerson A6220 is typically used in industrial applications, such as:
• Pumps
• Fans
• Compressors
• Generators
• Motors

For more information on the Emerson A6220, please visit the Emerson website.

Here are some additional details about the Emerson A6220:

• The Emerson A6220 is a fault-tolerant module, which means that it can continue to operate even if one of the channels fails.
• The Emerson A6220 has a modular design, which makes it easy to expand and maintain.
• The Emerson A6220 is a ruggedized module, which means that it can withstand harsh environmental conditions.

I hope this information is helpful. Please let me know if you have any other questions.
