Emerson A6110 Datasheet

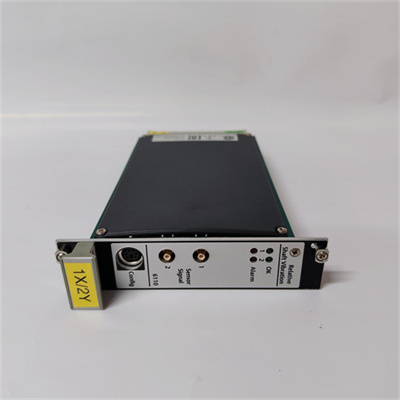

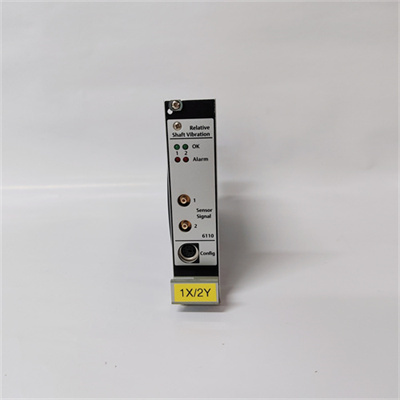

The Emerson A6110 is a two-channel, 3U size, 1-slot plug-in module that decreases cabinet space requirements in half from traditional four-channel 6U size cards. It is designed for use in the AMS 6500 Machinery Health Monitor, which is an integral part of PlantWeb® and AMS software. The A6110 is used to monitor shaft relative vibration, which is an important measurement on all sleeve bearing machines for predictive and protection monitoring.

Key features of the Emerson A6110 include:

• Two independent or combined monitoring modes
• Eddy current, differential Emerson sensor inputs
• Galvanically isolated from power supply
• Input resistance >100 kΩ
• Input voltage range 0 to -22 VDC
• Lower cutoff 1 or 5 Hz
• Upper cutoff 50-2000 Hz* Frequency band 1-1000 Hz
• Non-synchronous vibration detection
• Synchronous vibration detection
• Alarm/trip outputs for each channel
• 4-20 mA output for each channel
• RS-485 communications

Additional features:

• The Emerson A6110 is CE certified.
• The Emerson A6110 is NEMA 4X rated.
• The Emerson A6110 is backed by Emerson’s global support network.

Applications:

• The Emerson A6110 is typically used in industrial applications, such as:
• Pumps
• Fans
• Compressors
• Generators
• Motors

For more information on the Emerson A6110, please visit the Emerson website.

Here are some additional details about the Emerson A6110:

• The Emerson A6110 is a fault-tolerant module, which means that it can continue to operate even if one of the channels fails.
• The Emerson A6110 has a modular design, which makes it easy to expand and maintain.
• The Emerson A6110 is a ruggedized module, which means that it can withstand harsh environmental conditions.
