E33NCHA-LNN-NS-00 Datasheet

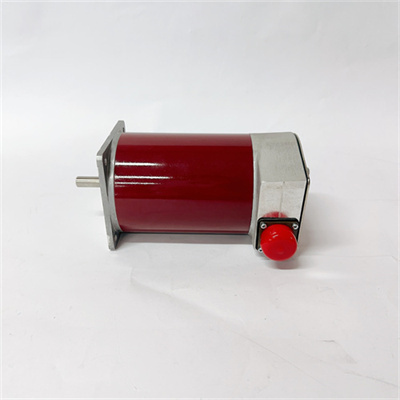

The E33NCHA-LNN-NS-00 is a NEMA 34 size stepper motor from the E3H3 series by Kollmorgen. It is a high-performance motor with a holding torque of 6.64 Nm (49.2 lb-in) and a step angle of 1.8 degrees. The motor is designed for use in a variety of applications, including:

• Machine tools
• Packaging machinery
• Printing presses
• Textile machinery
• Semiconductor equipment

Key features of the E33NCHA-LNN-NS-00 include:

• SIGMAX construction for high torque and smooth operation
• Class B insulation for high temperature operation
• IP65 rating for protection against dust and water ingress
• 4-leadwire parallel connection for easy wiring
• System MS connector for compatibility with a wide variety of drives

Specifications:

• Motor type: Stepper motor
• Series: E3H3
• Frame size: NEMA 34
• Holding torque: 6.64 Nm (49.2 lb-in)
• Step angle: 1.8 degrees
• Number of steps per revolution: 200
• Rated current: 8.6 A (parallel)
• Voltage: 24/48 VDC
• Power: 200 W
• Inertia: 1.77 kg·cm²
• Maximum radial load: 156 N
• Maximum axial load: 801 N
• Operating temperature: -20 to 80 °C
• Storage temperature: -40 to 85 °C
• Humidity: 0 to 95% RH, non-condensing
• Vibration: 0.5 g RMS, 5 to 35 Hz
• Shock: 5 g, 11 ms half-sine
• Weight: 3.5 kg (7.7 lb)

Additional features:

• The E33NCHA-LNN-NS-00 is available with a variety of options, including:
  • Different winding configurations
  • Custom flanges and shafts
  • Feedback devices
• The E33NCHA-LNN-NS-00 is backed by Kollmorgen’s global support network.

For more information on the E33NCHA-LNN-NS-00, please visit the Kollmorgen website.

Here are some additional details about the E33NCHA-LNN-NS-00:

• The E33NCHA-LNN-NS-00 is a hybrid stepper motor, which means that it uses both permanent magnets and electromagnets to generate torque. This gives the motor the high torque and smooth operation of a permanent magnet motor, as well as the high speed and low-speed holding capability of an electromagnet motor.
• The E33NCHA-LNN-NS-00 is a flange-mounted motor, which means that it mounts to a machine or other structure using a flange plate. This type of mounting is ideal for applications where the motor needs to be rigidly mounted.
• The E33NCHA-LNN-NS-00 is a 4-wire motor, which means that it has four lead wires that connect the motor to the drive. This is the most common type of stepper motor connection.
