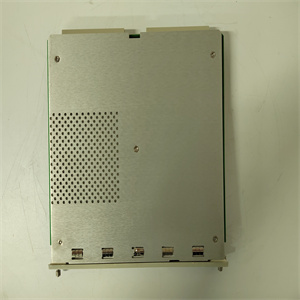

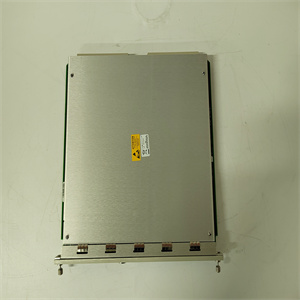

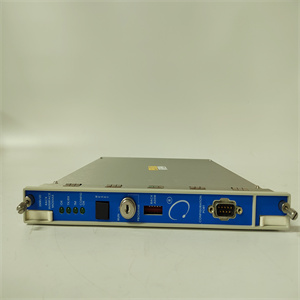

Product Details for Bently Nevada 3500/20-01-01-00 125744-02 Rack Interface Module

General Information

• Manufacturer: Bently Nevada
• Part Number: 3500/20-01-01-00 125744-02
• Product Type: Rack Interface Module (RIM)
•

  BENTLY 3500-20 125744-02 2

• Series: 3500 System

Description

The Bently Nevada 3500/20-01-01-00 125744-02 Rack Interface Module (RIM) is a critical component of the Bently Nevada 3500 System, which is used for machinery protection and condition monitoring. The RIM serves as the primary interface to the 3500 rack, enabling communication between the rack and external devices. It also performs various functions essential for system operation, including:

• Configuring the rack
• Retrieving machinery information
• Supporting external communications processors
•

  BENTLY 3500-20 125744-02 2

Key Features

• Four-channel input: Accepts signals from up to four proximity and seismic transducers
• Signal conditioning: Processes input signals to generate various parameters, including vibration amplitude, vibration frequency, and position
• Alarm generation: Compares conditioned signals with user-programmable alarms to detect and alert operators of potential machinery issues
• Data communication: Provides communication pathways for data exchange between the rack and external systems

Applications

The Bently Nevada 3500/20-01-01-00 125744-02 Rack Interface Module is widely used in various industries for machinery protection and condition monitoring, including:

• Oil and gas
• Power generation
• Petrochemical
• Manufacturing

Specifications

• Input Impedance: 270 Ω
• Output Impedance: 270 Ω
• Power Requirements: 24 VDC
• Operating Temperature: -20°C to 65°C (-4°F to 149°F)
• Storage Temperature: -40°C to 80°C (-40°F to 176°F)
• Humidity: 95% non-condensing
• Dimensions: 241.3 mm x 24.4 mm x 241.8 mm (9.5 in. x 0.96 in. x 9.52 in.)
• Weight: 2.2 kg (4.85 lbs.)

Additional Information

For more detailed information on the Bently Nevada 3500/20-01-01-00 125744-02 Rack Interface Module, please refer to the Bently Nevada product documentation or contact a Bently Nevada authorized representative.

Where to Buy

The Bently Nevada 3500/20-01-01-00 125744-02 Rack Interface Module can be purchased from authorized Bently Nevada distributors or through the Bently Nevada website.
