Product Parameters

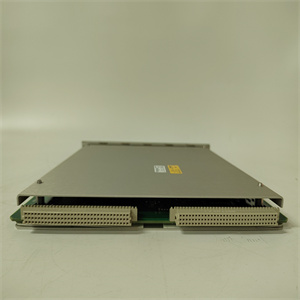

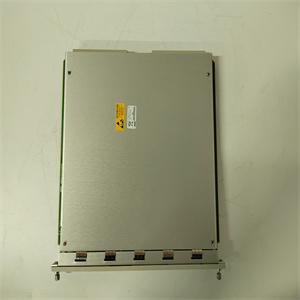

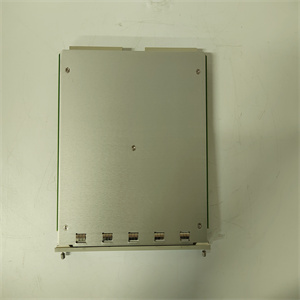

• Product Name: Bently Nevada 3500/60 Temperature Monitor
• Part Number: 163179-01
• Number of Channels: 6
• Input Signal: RTD or Thermocouple
•

  BENTLY 3500-60 163179-01 1

• Input Impedance: 10 MΩ for each lead input
• Power Consumption: 7 watts
• Temperature Range:
  • RTDs:
    • 100Ω 3-wire & 4-wire platinum RTD (α = 0.00385): -200°C to +850°C (-328°F to +1562°F)
    • 100Ω 3-wire & 4-wire platinum RTD (α = 0.00392): -200°C to +700°C (-328°F to +1292°F)
    • 120Ω 3-wire & 4-wire nickel RTD: -80°C to +260°C (-112°F to +500°F)
    • 10Ω 3-wire & 4-wire copper RTD: -100°C to +260°C (-148°F to +500°F)
  • Thermocouples:
    • Type E: -100°C to +1000°C (-148°F to +1832°F)
• Accuracy: ±0.25% of full scale
• Resolution: 0.1°C (0.18°F)
• Outputs:
  • Alarm relays
  • Analog outputs (optional)
• Communication: Ethernet (optional)

Product Description

The Bently Nevada 3500/60 Temperature Monitor is a six-channel temperature monitoring system designed for use in harsh industrial environments. It accepts RTD or thermocouple inputs and conditions the signals to provide accurate temperature measurements. The 3500/60 can be used to monitor a variety of temperatures, including bearing temperatures, process temperatures, and ambient temperatures.

The 3500/60 is a versatile and reliable temperature monitoring system that can be used in a wide variety of applications. It is commonly used in the following industries:

• Oil and gas
• Power generation
• Pulp and paper
• Chemical processing
• Manufacturing

Features

• Six channels of temperature monitoring
• Accepts RTD or thermocouple inputs
• Wide temperature range
• High accuracy and resolution
• Alarm relays and analog outputs (optional)
• Ethernet communication (optional)
• Rugged and reliable construction

Benefits

• Protects machinery from damage due to overheating
• Improves process efficiency
• Reduces maintenance costs
• Extends machine life

Applications

• Bearing temperature monitoring
• Process temperature monitoring
• Ambient temperature monitoring

Additional Information

For more information on the Bently Nevada 3500/60 Temperature Monitor, please refer to the following resources:

• Bently Nevada 3500/60 Temperature Monitor Datasheet
• Bently Nevada 3500 Machinery Protection Systems
