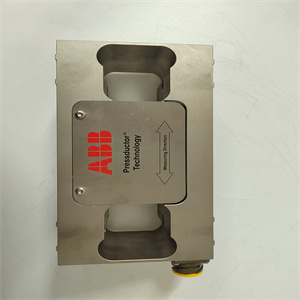

ABB PFTL101A 1.0KN 3BSE004166R1 1

ABB PFTL101A 1.0KN 3BSE004166R1 is a horizontal tension sensor offered by ABB. Here is a detailed overview of its specifications, features, functions, and application areas:

Product Model:
ABB PFTL101A 1.0KN 3BSE004166R1

Product Parameters and Specifications:

Measurement Range: 1.0 kN (1000 Newton)
Tension Measurement: Horizontal tension sensor designed to
ABB PFTL101A 1.0KN 3BSE004166R1 1

measure tension or pull forces in the horizontal direction¹.
Sensing Technology: Uses strain gauge or electronic sensor technology to detect tension forces¹.
Input Voltage: 24V²
Work Voltage: 24V²
Rated Current: 5A²
Communication Interface: HDMI interface²
Operating Temperature: -40 to 100°C²
System Memory: 8MB²
Internal Memory: Memory expansion capacity up to 128MB²
Display: IPS display with 99.9% color accuracy²
USB Interfaces: 2 USB interfaces²
Storage Card Slots: 2 slots²
Panel Protection Grade: IP3²

Dimensions and Weight:
Exact dimensions and weight are not specified in the search results. However, it is likely a compact sensor designed for industrial applications.

Features:

High Accuracy: Provides precise tension measurements.
Remote Control: Allows for remote monitoring and configuration².
Self-Diagnostics: Includes self-diagnostic testing for sensor functionality³.
Configurable Outputs: Offers analog and digital inputs/outputs for integration into various systems³.
Multiple Units: Supports unit selection for tension measurement in N, kN, MN, kp, t, lb, T³.
Alarm Function: Includes light alarm functionality².

Functions:

Tension Measurement: Measures horizontal tension or pull forces to ensure materials or devices are operating within specified tension limits¹.
Monitoring and Control: Provides real-time tension data for monitoring and controlling industrial processes¹.
Calibration and Maintenance: Regular calibration and maintenance ensure accurate and reliable tension measurements¹.

Application Areas:

Textile Industry: Used to control yarn or fabric tension during textile production⁴.
Printing Machinery: Ensures paper or rolls maintain constant tension during printing processes⁴.
Metal Processing: Maintains appropriate tension in metal strip production⁴.
Packaging Industry: Controls tension in packaging materials¹.
Cable and Wire Manufacturing: Ensures cables and wires maintain consistent tension during production¹⁴.
Other Industries: Also used in industries like paper and film processing, wire drawing, and other manufacturing processes where tension control is critical³⁷.
